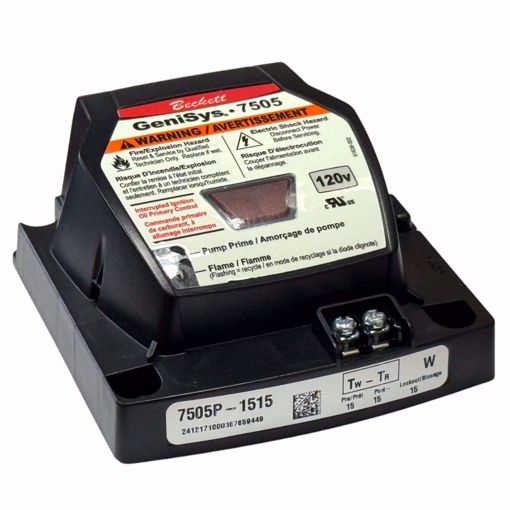

⚡ Beckett 7505P1515U GeniSys Advanced 120V Oil Burner Control – 15 Second Lockout

📝 Product Overview

The Beckett GeniSys 7505P1515U is a 120 VAC primary safety control for residential and light commercial oil burners, commonly used in boilers, furnaces, and water heaters. The control operates the burner’s motor, igniter, and optional solenoid valve using interrupted ignition with a 15-second lockout time.

Front-mounted 24 VAC thermostat terminals are compatible with both mechanical and power-stealing thermostats (if applicable). For high-moisture environments, a potted version is available as the Beckett GeniSys 7575.

Programmable Pre- and Post-Purge Timings: Use the GeniSys 52082 Contractor Tool or BeckettLink Pro 7652 (sold separately) to customize valve-on and motor-off delay timings. The control stores the last 15 burner cycles for diagnostics.

Flame Detection: Works with the GeniSys CAD Cell Flame Detector Kit 7006U (sold separately) for full burner control.

⚠️ Important Update – Beckett Control Packages

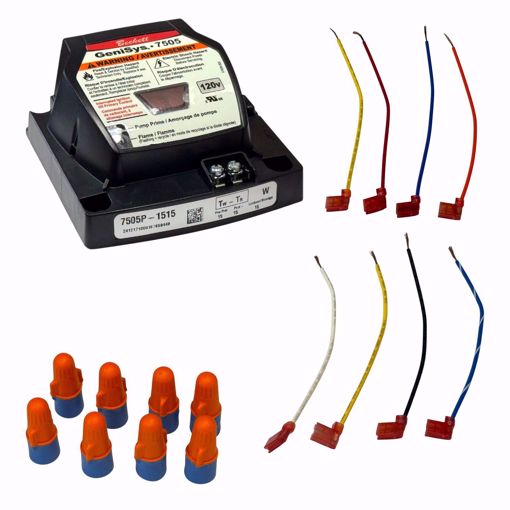

Beckett has stopped including completion kits (wire leads, wire nuts, and adapters) with these control models:

7505 • 7575 • 7580 • 7556 • 7559

What’s Changed?

• Wire Leads, Wire Nuts, and Adapters are no longer included

• Customers must purchase these components separately if needed

Need the Complete Setup?

• 7505 / 7575 / 7580 → Order Kit: 7505WSKU

• 7556 / 7559 → Order Kit: 7556WSKU

👉 Be sure to add the correct kit if your installation requires these items

✅ Key Features & Benefits

✔️ Water-Resistant Design – Reliable in humid environments
✔️ Thermostat & Boiler Control Compatible – Supports a wide range of thermostats
✔️ Customizable Pre-Time & Post-Time – Using GeniSys Contractor Tool 52082 (sold separately)
✔️ Three Status Lights – Easy monitoring and diagnostics
✔️ Welded Relay Protection – Redundant motor relays for reliability
✔️ Limited Reset & Limited Recycle – Enhances safety during operation
✔️ Sleek, Modern Design – Technician-friendly layout
✔️ Technician Pump Prime Mode – Simplifies maintenance
✔️ 7505a replaces Honeywell R8184G / 7505b replaces Honeywell R7184B
✔️ Two Communication Ports – Add alarm contacts, programming display, or future upgrades

⚡ Electrical Ratings

Inputs

Outputs

📊 Application & Environmental Ratings

⚡ Timing Details

• Lockout Time: 15 sec

• Valve-On Delay Time: 15 sec

• Motor-Off Delay Time: 15 sec

Note: Valve-on delay and motor-off relay timings are programmable using the GeniSys Contractor Tool 52082 (sold separately)

⚠️ Common Symptoms When Replacement Is Needed

• Burner fails to start or ignite

• Frequent flame failure lockouts

• Motor or igniter does not respond to control signals

• Alarm output triggers repeatedly

• Erratic burner operation due to moisture or environmental exposure

❓ Frequently Asked Questions (FAQ)

Q: What equipment is the 7505P1515U used on?
A: Residential and light commercial oil burners, including boilers, furnaces, and water heaters.

Q: Can it operate in high-moisture environments?
A: Yes — but for maximum protection, consider the potted 7575 version.

Q: Does it support CAD Cell flame detection?
A: Yes — works with GeniSys CAD Cell Kit 7006U (sold separately).

Q: Can I program pre-purge and post-purge timing?
A: Yes — using GeniSys Contractor Tool 52082 or BeckettLink Pro 7652 (sold separately).

🛒 Shopping Tips

• Verify input voltage (102–132 VAC) and thermostat compatibility

• Pair with GeniSys CAD Cell Kit 7006U and Contractor Tool 52082 (sold separately) for full burner functionality

• Add the appropriate completion kit if installation requires wire leads, nuts, or adapters
