⚡ Beckett 7505P452MU GeniSys Advanced 120V Oil Burner Control – 15 Second Lockout

📝 Product Overview

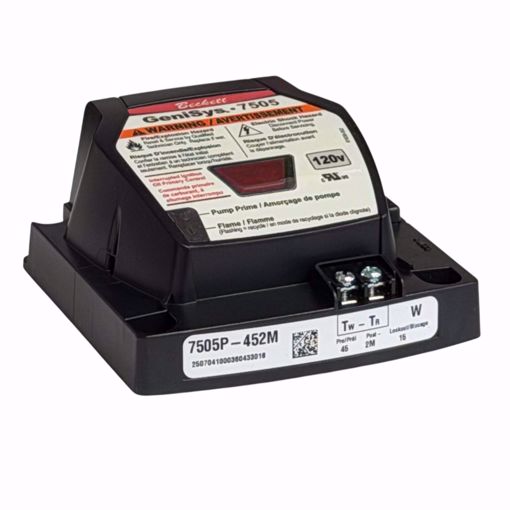

The Beckett GeniSys 7505P452MU is a 120 VAC primary safety control for residential and light commercial oil burners, ideal for boilers, furnaces, and water heaters. It manages the burner’s motor, igniter, and optional solenoid valve using interrupted or intermittent ignition with a 15-second lockout time.

Front-mounted 24 VAC thermostat terminals are compatible with mechanical and power-stealing thermostats (if applicable). For high-moisture environments, a potted version is available as the Beckett GeniSys 7575.

Programmable Pre- and Post-Purge Timings: Use the GeniSys 52082 Contractor Tool or BeckettLink Pro 7652 (sold separately) to adjust valve-on and motor-off delay timings. The control stores the last 15 burner cycles for diagnostics.

Flame Detection: Works with a suitable CAD Cell flame sensor 7006U (sold separately) for full burner control.

⚠️ Important Update – Beckett Control Packages

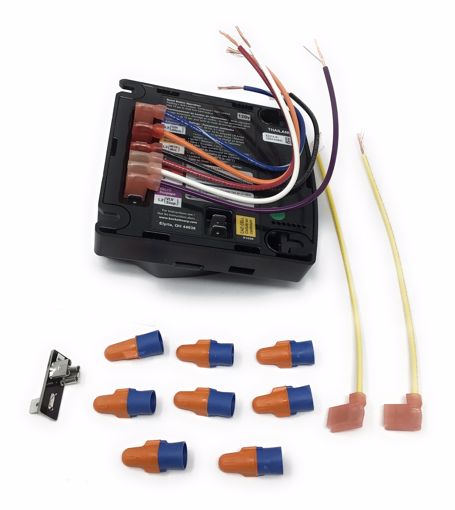

Beckett has stopped including completion kits (wire leads, wire nuts, and adapters) with these control models:

7505 • 7575 • 7580 • 7556 • 7559

What’s Changed?

• Wire Leads, Wire Nuts, and Adapters are no longer included

• Customers must purchase these components separately if needed

Need the Complete Setup?

• 7505 / 7575 / 7580 → Order Kit: 7505WSKU

• 7556 / 7559 → Order Kit: 7556WSKU

👉 Be sure to add the correct kit if your installation requires these items

✅ Key Features & Benefits

✔️ Water-Resistant Design – Reliable in humid environments
✔️ Thermostat & Boiler Control Compatible – Supports a wide range of thermostats
✔️ Customizable Pre-Time & Post-Time – Using GeniSys Contractor Tool 52082 (sold separately)
✔️ Three Status Lights – Easy monitoring and diagnostics
✔️ Welded Relay Protection – Redundant motor relays for reliability
✔️ Limited Reset & Limited Recycle – Enhances safety during operation
✔️ Sleek, Modern Design – Technician-friendly layout
✔️ Technician Pump Prime Mode – Simplifies maintenance
✔️ 5-Year Warranty
✔️ 7505a replaces Honeywell R8184G / 7505b replaces Honeywell R7184B
✔️ Two Communication Ports – Add alarm contacts, programming display, or future upgrades

⚡ Electrical Ratings

Inputs

Outputs

📊 Application & Environmental Ratings

⚡ Timing Details

• Lockout Time: 15 sec

• Valve-On Delay Timer: 15 sec

• Motor-Off Delay Timer: 15 sec

Note: Valve-on delay and motor-off timings are programmable using GeniSys Contractor Tool 52082 (sold separately)

❓ Frequently Asked Questions (FAQ)

Q: What equipment is the 7505P452MU used on?
A: Residential and light commercial oil burners, including boilers, furnaces, and water heaters.

Q: Can it operate in high-moisture environments?
A: Yes — but for maximum protection, consider the potted 7575 version.

Q: Does it support CAD Cell flame detection?
A: Yes — works with a suitable CAD Cell flame sensor (sold separately).

Q: Can I program pre-purge and post-purge timing?
A: Yes — using GeniSys Contractor Tool 52082 or BeckettLink Pro 7652 (sold separately).

🛒 Shopping Tips

• Verify input voltage (102–132 VAC) and thermostat compatibility

• Pair with CAD Cell flame sensor and Contractor Tool 52082 (sold separately) for full burner functionality

• Add the appropriate completion kit if installation requires wire leads, nuts, or adapters

⚡ Common Symptoms

• Burner fails to start or locks out after 15 seconds

• Burner cycles on and off erratically

• No flame detected by CAD Cell

• Motor or solenoid valve does not activate

• Control lights indicate error codes or abnormal operation
