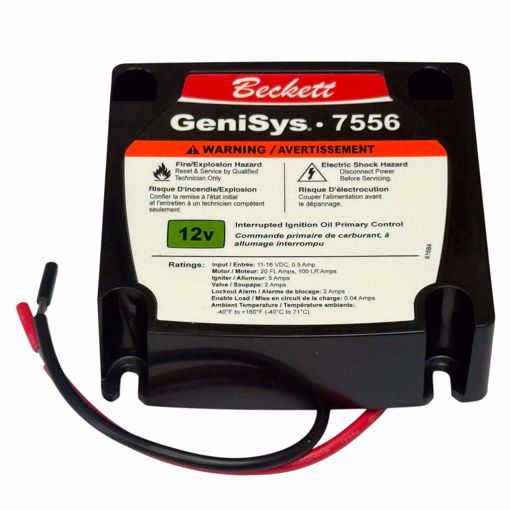

🔥 Beckett 7556P1530U GeniSys 7556 12V Oil Burner Control (15 Sec Lockout)

The Beckett 7556P1530U GeniSys 7556 is a rugged 12 VDC primary safety control for oil burners in mobile and industrial applications. Built for high moisture environments, this potted control manages the burner motor, igniter, and optional solenoid valve using a cad cell flame sensor.

Ideal for pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, it delivers reliable ignition control with programmable pre- and post-purge timing and advanced diagnostics.

⚠️ Important Update – Beckett Control Packages

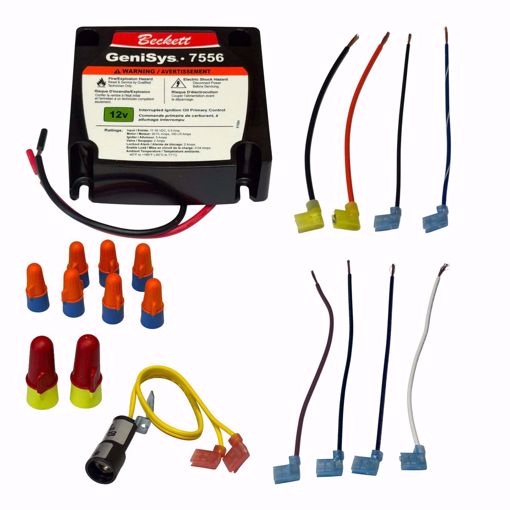

Beckett has stopped including completion kits (wire leads, wire nuts, and adapters) with the following control models:

7505 • 7575 • 7580 • 7556 • 7559

🔧 What’s Changed?

• Wire Leads, Wire Nuts, and Adapters are no longer included in these control packages.

• Customers must now purchase these components separately if needed.

🧰 Need the Complete Setup?

Completion components are available as separate kits:

• 7505 / 7575 / 7580 → Order Kit: 7505WSKU

• 7556 / 7559 → Order Kit: 7556WSKU

👉 Be sure to add the correct kit if your installation requires these items.

✅ Key Features & Benefits

✔️ 12VDC Operation – Designed for mobile and equipment-based burner systems
✔️ 15-Second Lockout Safety – Fast response to flame failure
✔️ Programmable Valve-On & Motor-Off Delays – Customizable for chamber cooling and system protection
✔️ Moisture-Resistant Design – Epoxy potted for harsh environments
✔️ Welded Relay Protection – Redundant motor relays for durability
✔️ Alarm Output – Visual or audible indication of flame failure and lockout
✔️ Interrupted Ignition – Efficient and reliable burner operation
✔️ Relight Function – Automatic retry for safe ignition
✔️ Fused Protection – Prevents electrical damage
✔️ Communication Port – Supports GeniSys Contractor Tool for diagnostics
✔️ Advanced Diagnostics – Stores last 15 burner cycles

⚡ Input Ratings

Ensures your system matches the required electrical input for safe and reliable operation.

⚡ Output Ratings

Controls the burner motor, igniter, solenoid valve, and lockout alarm safely and efficiently.

📊 Specifications

⚠️ Common Symptoms of a Failing Control

• Burner fails to start

• Intermittent ignition issues

• Lockout conditions with no visible flame

• No power to motor or igniter

• System repeatedly resets or cycles improperly

❓ Frequently Asked Questions (FAQ)

Q: What flame sensor is required?
A: This control uses a cad cell flame sensor and is compatible with the Beckett 7006U CAD Cell Kit.

Q: Can this control be programmed?
A: Yes — with the GeniSys Contractor Tool (52082) sold seperately, you can adjust pre-purge, post-purge, valve-on, and motor-off timing.

Q: Is this suitable for residential oil burners?
A: No — this model is designed for mobile and industrial 12VDC applications.

Q: Are completion kits included with the control?
A: No — Beckett has stopped including wire leads, wire nuts, and adapters in these control packages. If your installation requires them, you must purchase the appropriate kit separately (7556 / 7559 → 7556WSKU).

🛒 Shopping Tips

• ✔️ Confirm your system requires 12VDC (11–16 VDC nominal)

• ✔️ Make sure you have a cad cell flame sensor (7006U)

• ✔️ Consider adding the GeniSys Contractor Tool (52082) for advanced setup

• ✔️ Verify motor and load ratings match your burner system

• ✔️ Add the completion kit if your installation needs leads, nuts, or adapters
