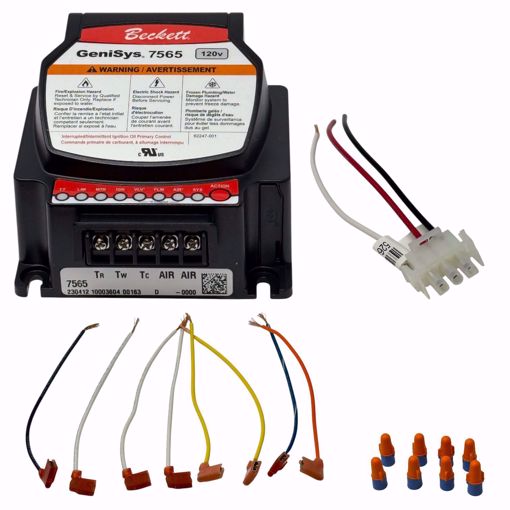

🔥 Beckett 7565U GeniSys Advanced Oil Burner Control – 120V Primary Control
📦 Product Overview
The Beckett 7565U GeniSys Control is a 120V advanced primary safety control designed for residential and light commercial oil burners. It manages burner operation by controlling the motor, igniter, and optional solenoid valve, while monitoring flame presence using a CAD cell sensor.
Built for modern systems, the 7565U supports #2 fuel oil, biodiesel up to B100, and renewable diesel, and offers advanced diagnostics, programmable timings, and mobile app connectivity through the myTechnician platform.
✅ Key Features
✔ Stores last 50 burner cycles & 15 fault codes
✔ Compatible with #2 oil, B100 biodiesel, and renewable diesel
✔ myTechnician app support for diagnostics & programming
✔ Configurable interrupted or intermittent ignition
✔ Adjustable pre-purge (valve-on delay) & post-purge (motor-off delay)
✔ Pump prime mode for faster service setup
✔ Separate inputs for combustion air & blocked vent
✔ 8 LED status lights for quick system diagnostics
✔ Auto-detects and configures solenoid valve timing
✔ Extra terminal for smart thermostat compatibility
📊 Technical Specifications
| Specification | Details |
|---|
| Part Number |
7565U |
| Brand |
Beckett |
| Control Type |
Advanced Primary Safety Control |
| Voltage |
120 VAC (102–132 VAC range) |
| Frequency |
60 Hz |
| Base Current |
100 mA (plus connected loads) |
| Lockout Time |
15 Seconds |
| Valve-On Delay |
15 Seconds (Pre-Purge) |
| Motor-Off Delay |
30 Seconds (Post-Purge) |
| Fuel Compatibility |
#2 Oil, Biodiesel (up to B100), Renewable Diesel |
| Flame Sensor |
CAD Cell (7006 Series or equivalent) |
| Thermostat Voltage |
24 VAC |
| Thermostat Anticipator |
0.1 A |
| App Compatibility |
myTechnician Enabled |
⚡ Input / Output Ratings
Inputs
| Input Type | Rating |
|---|
| Combustion Air / Blocked Vent (Front) |
10 mA @ 24 VAC min |
| Combustion Air / Blocked Vent (Underside) |
1.9 mA @ 120 VAC min |
Outputs
| Output | Rating |
|---|
| Motor |
120 VAC, 10 FLA / 60 LRA |
| Igniter |
120 VAC, 3 A |
| Solenoid Valve |
120 VAC, 1 A |
🌡️ Environmental Ratings
| Specification | Details |
|---|
| Operating Temperature |
-40°F to 150°F (-40°C to 65°C) |
| Storage Temperature |
-40°F to 150°F (-40°C to 65°C) |
| Humidity |
5% to 95% RH, non-condensing |
| Certifications |
UL 60730-1, UL 60730-2-5, CSA Certified |
🚀 Performance & Smart Control Benefits
- Real-time diagnostics and monitoring via mobile app
- Improves troubleshooting with fault history tracking
- Reduces service time with pump prime mode
- Optimizes burner efficiency with programmable timings
- Compatible with modern smart heating systems
- Enhances safety with automatic lockout protection
⚠️ Common Symptoms This Control Fixes
- Burner lockouts or repeated shutdowns
- No ignition or delayed startup
- Fault codes or inconsistent operation
- Poor system timing (pre/post purge issues)
- Intermittent burner cycling
❓ Frequently Asked Questions (FAQ)
Q: What burners is the 7565U compatible with?
A: It works with most residential and light commercial oil burners using a CAD cell flame sensor.
Q: Does this support biodiesel and renewable fuels?
A: Yes — it supports up to B100 biodiesel and renewable diesel.
Q: What is the lockout time?
A: The control locks out after 15 seconds if no flame is detected.
Q: Can I program this control?
A: Yes — using the myTechnician app, you can adjust timings and view diagnostics.
Q: Does it work with smart thermostats?
A: Yes — it includes compatibility for many modern thermostat systems.
🛒 Shopping Tips
🧭 Confirm your system uses a CAD cell flame sensor
🧭 Match voltage — 120V only
🔧 Consider upgrading for advanced diagnostics and faster troubleshooting
📱 Use the myTechnician app for full control and monitoring
- Ideal replacement for older controls lacking diagnostic capabilities
