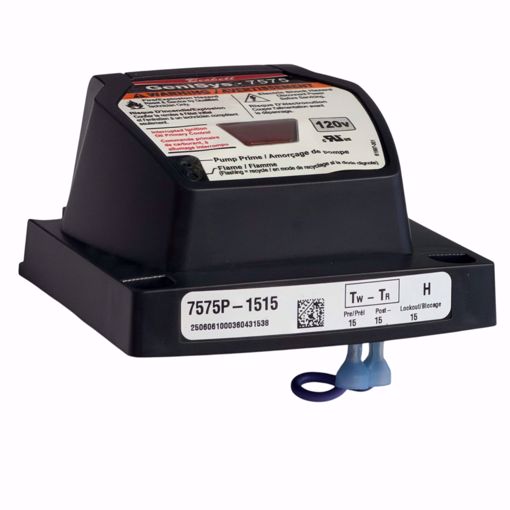

⚡ Beckett 7575P1515U GeniSys 7575 120V Oil Burner Primary Control – 15 Sec Lockout
📝 Product Overview
The Beckett GeniSys 7575 is a potted 120 VAC primary safety control designed for commercial and industrial applications, including pressure washers, asphalt distributors, and other industrial oil burners. Its epoxy-potted housing provides excellent moisture resistance, making it ideal for high-moisture environments.
The control operates the burner’s motor, igniter, and optional solenoid valve using interrupted ignition with a 15-second lockout time. Front-mounted 24 VAC thermostat terminals are compatible with mechanical and many power-stealing thermostats (if applicable).
The GeniSys Contractor Tool 52082 (sold separately) enables programming of pre-purge and post-purge timings. For diagnostics, the control stores the last 15 burner cycles.
Works with: GeniSys CAD Cell Flame Detector Kit 7006U (sold separately) for complete burner control.
⚠️ Important Update – Beckett Control Packages
Beckett has stopped including completion kits (wire leads, wire nuts, and adapters) with the following control models:
7505 • 7575 • 7580 • 7556 • 7559
What’s Changed?
-
Wire Leads, Wire Nuts, and Adapters are no longer included
-
Customers must purchase these components separately if needed
Need the Complete Setup?
👉 Be sure to add the correct kit if your installation requires these items
✅ Key Features & Benefits
✔️ Epoxy-Potted Design – Moisture-resistant for harsh environments
✔️ Compatible with Most Operating Controls – Easy integration with industrial setups
✔️ Customizable Pre- and Post-Purge Timings – Use GeniSys 52082 Contractor Tool (sold separately)
✔️ Three Status Lights – System monitoring and diagnostics
✔️ Welded Relay Protection – Redundant motor relays enhance reliability
✔️ Limited Reset & Limited Recycle – Safety feature for operational control
✔️ Sleek, Modern Design – Professional, technician-friendly layout
✔️ Technician Pump Prime Mode – Simplifies maintenance
✔️ 18-Month Warranty – Reliable industrial-grade performance
✔️ Communication Ports – For programming and diagnostics
⚡ Input Ratings
| Parameter | Specification |
|---|
| Voltage |
102–132 VAC |
| Current |
150 mA plus burner motor, igniter, and valve loads |
| Frequency |
60 Hz |
⚡ Output Ratings
| Output | Specification |
|---|
| Motor |
120 VAC, 10 FLA / 60 LRA* (reduce FLA by igniter current) |
| Igniter |
120 VAC, 3 A @ 0.7 PF min |
| Solenoid Valve |
120 VAC, 1 A @ 0.7 PF min |
| Thermostat Anticipator |
0.1 A (if applicable) |
| Thermostat Voltage |
24 VAC (if applicable) |
📊 Environmental Ratings
| Parameter | Specification |
|---|
| Storage & Operating Temp |
-40°F to +150°F (-40°C to +65°C) |
| Moisture |
5–95% RH, condensing |
⚠️ Common Symptoms When Replacement Is Needed
-
Burner fails to start or ignite
-
Frequent flame failure lockouts
-
Motor or igniter does not respond to control signals
-
Alarm output triggers repeatedly
-
Erratic burner operation due to moisture or environmental exposure
❓ Frequently Asked Questions (FAQ)
Q: What equipment is this control used on?
A: Commercial and industrial oil burners, including pressure washers, road stripers, and asphalt distributors.
Q: Can I program pre-purge and post-purge timing?
A: Yes — with the GeniSys Contractor Tool 52082 (sold separately).
Q: Does it work with CAD Cell flame sensors?
A: Yes — use the GeniSys CAD Cell Flame Detector Kit 7006U (sold separately).
Q: Is the control moisture-resistant?
A: Yes — epoxy-potted housing provides high moisture protection.
🛒 Shopping Tips
-
Verify input voltage (102–132 VAC) and thermostat compatibility
-
Use GeniSys CAD Cell Kit 7006U and Contractor Tool 52082 (sold separately) for full functionality
-
Add the appropriate completion kit if installation requires wire leads, nuts, or adapters
