🔥 Beckett 7580A0000U GeniSys 7580 240V Oil Burner Control (15 Sec Lockout)

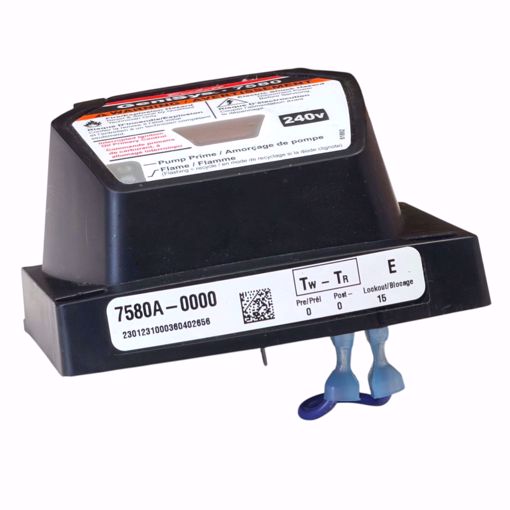

The Beckett 7580A0000U GeniSys 7580 is a robust 240 VAC primary safety control designed for commercial and industrial oil burner applications. Built for reliability in harsh environments, this control manages the burner motor, igniter, and optional solenoid valve using a cad cell flame sensor.

Ideal for industrial pressure washers, commercial equipment, and other heavy-duty applications, the GeniSys 7580 delivers precise ignition control with programmable pre- and post-purge timing and advanced diagnostics.

⚠️ Important Update – Beckett Control Packages

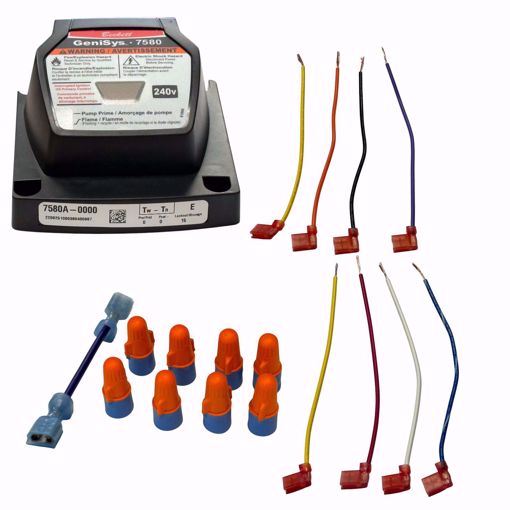

Beckett has stopped including completion kits (wire leads, wire nuts, and adapters) with the following control models:

7505 • 7575 • 7580 • 7556 • 7559

🔧 What’s Changed?

• Wire Leads, Wire Nuts, and Adapters are no longer included in these control packages.

• Customers must now purchase these components separately if needed.

🧰 Need the Complete Setup?

Completion components are available as separate kits:

• 7505 / 7575 / 7580 → Order Kit: 7505WSKU

• 7556 / 7559 → Order Kit: 7556WSKU

👉 Be sure to add the correct kit if your installation requires these items.

✅ Key Features & Benefits

✔️ 240V AC Operation – Designed for commercial and industrial burner systems
✔️ 15-Second Lockout Safety – Fast response to flame failure for added protection
✔️ Moisture-Resistant Design – Epoxy potted for harsh, high-moisture environments
✔️ Compatible with Most Controls – Works with a wide range of burner systems
✔️ Programmable Pre-Time & Post-Time – With the GeniSys Contractor Tool (52082)
✔️ Three Status Lights – Easy system monitoring and diagnostics
✔️ Welded Relay Protection – Redundant motor relays for reliability
✔️ Limited Reset & Recycle – Reduces damage from repeated faults
✔️ Technician Pump Prime Mode – Simplifies system setup
✔️ Communication Ports – Enables advanced diagnostics and programming

⚡ Input Ratings

Ensures your system matches the required electrical input for safe and reliable operation.

⚡ Output Ratings

Controls the burner motor, igniter, and optional solenoid valve for safe and efficient operation.

📊 Specifications

Quick reference for all the main technical specifications of the Beckett 7580A0000U.

⚠️ Common Symptoms of a Failing Control

• Burner fails to start

• Intermittent ignition issues

• Lockout conditions with no visible flame

• No power to motor or igniter

• System repeatedly resets or cycles improperly

❓ Frequently Asked Questions (FAQ)

Q: What flame sensor is required?
A: This control uses a cad cell flame sensor and is compatible with the Beckett 7006U CAD Cell Kit.

Q: Can this control be programmed?
A: Yes — with the GeniSys Contractor Tool (52082) sold seperatly, you can adjust pre-purge and post-purge timing.

Q: Is this suitable for residential oil burners?
A: No — this model is designed for commercial and industrial 240V applications.

Q: Are completion kits included with the control?
A: No — Beckett has stopped including wire leads, wire nuts, and adapters in these control packages. If your installation requires them, you must purchase the appropriate kit separately (7505 / 7575 / 7580 → 7505WSKU).

🛒 Shopping Tips

• ✔️ Confirm your system requires 208–240 VAC, 50/60 Hz

• ✔️ Make sure you have a cad cell flame sensor (7006U)

• ✔️ Consider adding the GeniSys Contractor Tool (52082) for advanced programming

• ✔️ Verify motor and load ratings match your burner system

• ✔️ Add the completion kit if your installation needs leads, nuts, or adapters
