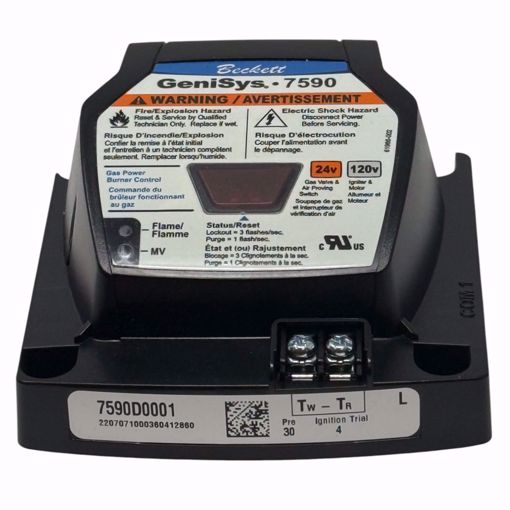

⚙️ Beckett 7590D0001U GeniSys 24V Gas Burner Primary Control
The Beckett 7590D0001U GeniSys Primary Control is a 24-volt advanced safety and control unit designed for CG4001 gas burners used in residential and light commercial heating systems. It ensures reliable ignition, safety monitoring, and precision control for gas-fired boilers, furnaces, water heaters, and other combustion systems.
Engineered with Beckett’s trusted GeniSys technology, this unit provides robust flame supervision, built-in diagnostics, and flexible timing options for safe and efficient burner operation.
✅ Key Features
-
✅ Designed for CG4001 gas power burners
-
✅ Provides supervision of 120V motor, igniter, and 24V gas valve
-
✅ Selectable pre-purge timing from 1–240 seconds
-
✅ Selectable ignition timing from 4–15 seconds
-
✅ Multiple ignition trials before lockout for added reliability
-
✅ Monitors combustion air proving switch for welded or stuck contacts
-
✅ Gas valve relay safety check each cycle
-
✅ Three LED indicators for fast and accurate diagnostics
-
✅ Easy 4x4 junction box mounting design
-
✅ Compatible with alarm module and future communication accessories
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
Beckett |
| Model |
7590D0001U |
| Series |
GeniSys |
| Application |
Gas Power Burner Control (CG4001) |
| Voltage (Inputs) |
120V AC (motor, igniter), 24V AC (control, gas valve, air switch) |
| Frequency |
50/60 Hz |
| 24V Current Draw |
0.2A + gas valve |
| Main Valve Rating |
2.0A (24V) resistive |
| Motor Relay Rating |
7.4A (120V) |
| Igniter Relay Rating |
1.0A (120V) |
| Lockout Time |
4 seconds |
| Outputs |
120V Igniter & Blower Motor, 24V Gas Valve |
| Pressure Switch Connector |
2-pin connection |
| Mounting |
4" x 4" junction box |
| Lockout Type |
Non-volatile lockout (manual reset not included on D model) |
⚠️ Common Symptoms / When to Replace
-
Burner fails to ignite or goes into lockout
-
No voltage output to gas valve or igniter
-
Intermittent burner operation or flame loss
-
Faulty or stuck combustion air switch detection
-
LED diagnostic codes indicating internal control failure
-
System short-cycles or fails pre-purge or ignition test
💬 Frequently Asked Questions (FAQ) ❓
Q: What burners is the 7590D0001U compatible with?
A: It’s designed for Beckett CG4001 Gas Power Burners used in boilers, furnaces, and water heaters.
Q: What’s the difference between the 7590C and 7590D models?
A: The 7590C includes a manual reset and non-volatile lockout, while the 7590D offers automatic reset and standard lockout.
Q: Can this control detect air proving switch faults?
A: Yes — it monitors for welded or stuck air switch contacts before and during operation.
Q: How many ignition attempts before lockout?
A: It can perform single or multiple ignition trials based on system configuration.
Q: Does this control include communication capability?
A: Yes — it includes a communication port for Beckett alarm modules and future devices.
🛒 Shopping Tips
-
Verify your burner model — this control fits CG4001 and compatible Beckett gas systems.
-
Always disconnect power before installation or replacement.
-
Replace if LED lockout persists or diagnostic codes indicate control failure.
-
Consider keeping a spare control for downtime prevention in commercial systems.
-
For oil burners, use Beckett GeniSys Oil Primary Controls instead.
