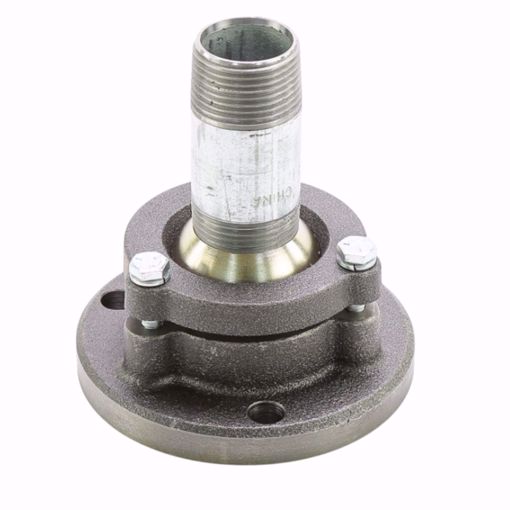

Fireye 60-1664-3 – 1" NPT Swivel Mount Adapter
The Fireye 60-1664-3 Swivel Mount Adapter provides flexible positioning for UV and infrared flame scanners, allowing precise flame alignment after installation. Designed for industrial burner applications, this adapter ensures safe, reliable operation for a wide range of Fireye scanners.
Compatible with 45UV5 (UV self-check), 45RM (infrared), 45FS (explosion-proof), and 45UV2/3 series scanners, it supports accurate scanning even in high-temperature industrial environments.
✅ Key Features
-
✅ Swivel mount adapter for precise flame alignment
-
✅ Compatible with 45UV5, 45RM, 45FS, 45UV2/3 series scanners
-
✅ Dual-thread design: 1" NPT scanner side, 2" NPT mount side
-
✅ 360° swivel adjustment for exact sighting angle
-
✅ 3-hole, 120° bolt pattern for secure mounting
-
✅ Rugged, high-temperature alloy construction for industrial use
-
✅ OEM-quality Fireye replacement
📋 Specifications
| Specification | Details |
|---|
| Part Number |
60-1664-3 |
| Product Type |
Swivel Mount Adapter |
| Brand |
Fireye |
| Thread Sizes |
1" NPT (scanner side), 2" NPT (mount side) |
| Bolt Pattern |
3-hole, 120° |
| Swivel Adjustment |
360° rotation for precise alignment |
| Compatible Scanners |
45UV5, 45RM, 45FS, 45UV2/3 series |
| Material |
High-temperature alloy |
| Function |
Adjust scanner sighting angle after installation |
🔄 Cross Reference Table
| Manufacturer | Reference |
|---|
| Fireye |
60-1664-3 |
| Application |
Swivel Mount Adapter for UV/IR flame scanners |
⚠️ Common Symptoms Indicating Replacement
-
Difficulty aligning flame scanner with burner flame
-
Loose or misaligned scanner after installation
-
Damaged or corroded swivel mechanism
-
Inability to achieve full 360° adjustment
❓ Frequently Asked Questions (FAQ)
Q: Which scanners can use this swivel mount adapter?
A: Compatible with 45UV5 (UV self-check), 45RM (infrared), 45FS (explosion-proof), and 45UV2/3 series scanners.
Q: What thread sizes does it have?
A: 1" NPT on the scanner side and 2" NPT on the mount side.
Q: What is the purpose of the swivel mount?
A: It allows precise adjustment of the scanner sighting angle for accurate flame detection after installation.
Q: Is this an OEM Fireye part?
A: Yes, this is a genuine Fireye replacement.
🛒 Shopping Tips
-
Use the swivel adapter for exact flame alignment after scanner installation.
-
Inspect bolt pattern and swivel mechanism for wear or corrosion.
-
Tighten all connections securely to maintain precise scanner position.
-
Ideal for industrial burners operating in high-temperature environments.
