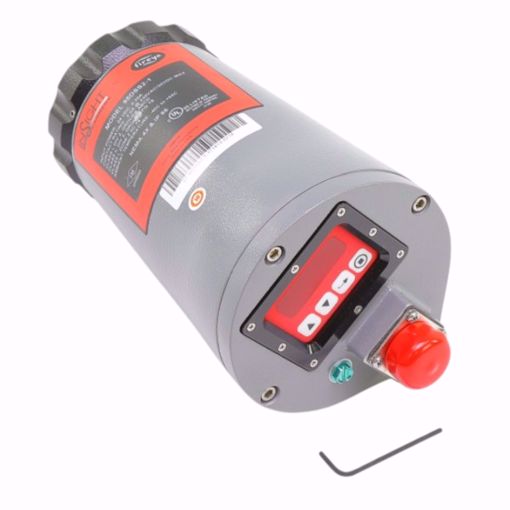

Fireye 95DSS2-1 – Enhanced InSight Flame Scanner (Dual Sensor UV & IR)
The Fireye 95DSS2-1 InSight Scanner is an advanced microprocessor-based flame scanner featuring dual ultraviolet (UV) and infrared (IR) sensors. Designed for multi-fuel and multi-burner applications, it provides accurate flame detection, self-diagnostics, and an internal flame relay, eliminating the need for a separate flame amplifier.
This enhanced InSight scanner replaces older Fireye 45FS1, 45UVFS1, and 45RM4 signature scanners, providing high reliability and advanced features for industrial burners.
✅ Key Features
-
✅ Dual-sensor (UV + IR) InSight flame scanner for multi-fuel applications
-
✅ Microprocessor-based with solid-state detection sensors
-
✅ Internal flame relay with adjustable ON/OFF thresholds
-
✅ Measures flame flicker amplitude to ensure accurate flame detection
-
✅ Automatic or manual modulation frequency selection (S2 models)
-
✅ Electronic self-checking, no mechanical shutter required
-
✅ 8-character alpha-numeric LED display and 4-button keypad for setpoint selection and operating status
-
✅ NEMA 4X and IP66 rated for harsh industrial environments
-
✅ 24 VDC input, 0.35 Amps, with 12-pin connector
-
✅ Contact Rating: 2.0 Amps @ 230VAC / 30VDC max
📋 Specifications
| Specification | Details |
|---|
| Part Number |
95DSS2-1 |
| Product Type |
Fireye InSight Enhanced Flame Scanner (Dual Sensor) |
| Brand |
Fireye |
| Sensor Type |
Dual UV + IR solid-state |
| Input Power |
24 VDC, 0.35A |
| Contact Rating |
2.0A Max Resistive @ 230VAC / 30VDC |
| Ambient Temperature |
-40°F to 149°F (-40°C to 65°C) |
| Enclosure |
NEMA 4X, IP66 |
| Electrical Connection |
12-pin connector |
| Display |
8-character alpha-numeric LED |
| Controls |
4-button keypad |
| Function |
Detects presence/absence of flame; internal flame relay; self-checking |
| Features |
Dual sensor, microprocessor-based, automatic/manual modulation selection, electronic self-checking |
🔄 Cross Reference Table
| Manufacturer | Reference |
|---|
| Fireye |
95DSS2-1 |
| Application |
Enhanced InSight dual sensor flame scanner (UV + IR) |
⚠️ Common Symptoms Indicating Replacement
-
Flame detection inconsistent or fails entirely
-
Scanner fails self-check diagnostics or displays error codes
-
LED display or keypad malfunction
-
Internal flame relay fails to operate correctly
-
Inaccurate flame detection in multi-fuel applications
❓ Frequently Asked Questions (FAQ)
Q: What types of flames can this scanner detect?
A: It detects flames using both ultraviolet (UV) and infrared (IR) sensors, ideal for multi-fuel applications.
Q: Does it require an external flame amplifier?
A: No, it has an internal flame relay with adjustable ON/OFF thresholds.
Q: What is the operating voltage and current?
A: 24 VDC, 0.35A.
Q: How is it connected electrically?
A: Via a 12-pin connector.
Q: What environmental rating does it have?
A: NEMA 4X and IP66, suitable for harsh industrial environments.
🛒 Shopping Tips
-
Verify sensor type matches your fuel and burner application.
-
Regularly check LED display and perform electronic self-checks to ensure scanner reliability.
-
S2 models allow automatic modulation frequency selection with manual override for optimization.
-
Suitable replacement for older 45FS1, 45UVFS1, and 45RM4 scanners.
