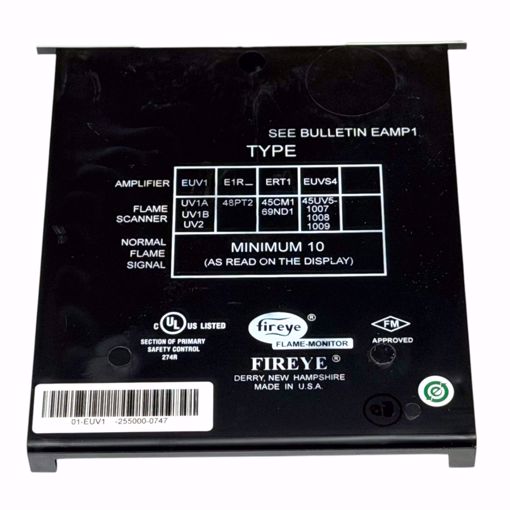

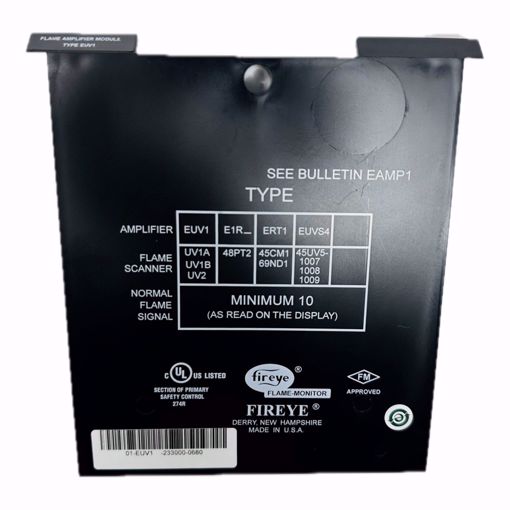

UV1 Fireye Ultraviolet Flame Amplifier Module – 120 VAC
The EUV1 Fireye Ultraviolet Flame Amplifier Module provides reliable flame detection when used with compatible ultraviolet (UV) flame scanners in Fireye Flame-Monitor systems. Designed for industrial and commercial burner applications, the EUV1 processes UV flame signals and communicates flame presence to the control system for safe burner operation.
This module is used with E110 and EB700 controls and is functionally identical to Power Flame P/N 398210, making it a dependable replacement option.
✅ Key Features
-
✅ Ultraviolet (UV) flame amplifier module
-
✅ Compatible with E110 and EB700 Flame-Monitor controls
-
✅ Works with multiple UV flame scanners
-
✅ 120 VAC operation
-
✅ Wide operating temperature range
-
✅ Designed for industrial burner safety systems
-
✅ Direct replacement equivalent to PowerFlame 398210
-
✅ OEM-quality construction for long-term reliability
📋 Specifications
| Specification | Details |
|---|
| Part Number |
EUV1 |
| Product Type |
Ultraviolet Flame Amplifier Module |
| Brand |
Fireye |
| Voltage |
120 VAC |
| Temperature Range |
-40°F to 140°F (-40°C to 60°C) |
| Control Compatibility |
E110, EB700 |
| Flame Detection Type |
Ultraviolet (UV) |
| System Type |
Flame-Monitor |
| Replacement Equivalent |
Power Flame 398210 |
🔄 Compatible Flame Scanners
The EUV1 amplifier is designed for use with the following UV flame scanners:
⚠️ The flame amplifier must be matched with the appropriate flame scanner for proper operation.
🔄 Cross Reference Table
| Manufacturer | Reference |
|---|
| Fireye |
EUV1 |
| Power Flame |
398210 |
| Application |
UV Flame Amplifier Module |
⚠️ Common Symptoms Indicating Replacement
-
Flame signal not detected during burner operation
-
Burner shutdown despite visible flame
-
Intermittent flame detection faults
-
Amplifier fault alarms or lockouts
-
Aging electronics in high-temperature environments
❓ Frequently Asked Questions (FAQ)
Q: What is the function of the EUV1 flame amplifier?
A: It processes signals from UV flame scanners and sends flame status information to the burner control system.
Q: Is this a self-checking UV amplifier?
A: No. The EUV1 is a standard UV amplifier. Self-checking UV amplifiers (such as EUVS series) are recommended for continuously firing burners.
Q: Can this replace Power Flame 398210?
A: Yes. The EUV1 is electrically and functionally equivalent to Power Flame 398210.
Q: What should be done after replacing the amplifier?
A: The burner should be cycled on and off several times to confirm proper flame detection and safe operation.
🛒 Shopping Tips
-
Confirm your system uses UV flame detection, not flame rod or IR.
-
Verify compatibility with your Fireye control chassis.
-
Match the amplifier to the correct UV flame scanner model.
-
For continuous-duty burners, consider self-checking UV systems.
