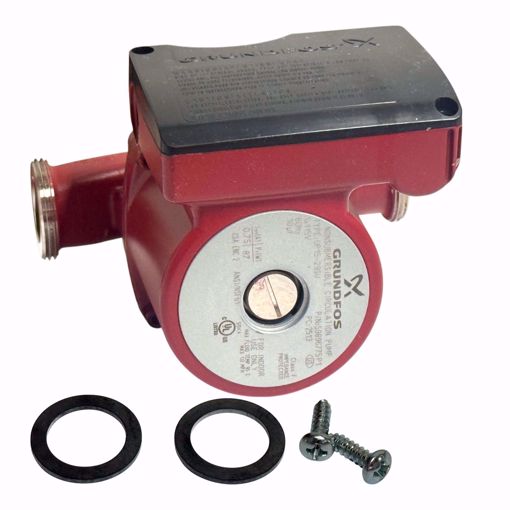

59896775 Grundfos UP15-29SU Stainless Steel Pump 1/12 HP 115V Union Connections
- Product name: UP 15-29 SU
- Product Number: 59896775
- Speed Number: 1
- Max flow: 20.7 US gpm
- Head max: 9.84 ft
- Maximum operating pressure 145 psi
- Approvals on nameplate: UL, CSA
- Maximum ambient temperature: 104 °F
- Ambient max at 176°F liquid 176 °F
- Maximum operating pressure 145 psi
- Flange standard: USA Threaded
- Type of connection: S.S. Union
- Pipe connection: 1-1/4" NPSM
- Pressure stage: 10
- Port-to-port length: 5.87 in
- Number of poles: 2
- Max. power input: 87 W
- Rated power - P2: 0.121 HP
- Main frequency: 60 Hz
- Rated voltage: 1 x 115 V
- Current in speed 3 0.75 A
- Capacitor size - run 10 µF/180 V
- Insulation class (IEC 85): F
- Motor protection: CONTACT
- Thermal protection: internal
Features
• Perfect for hot water recirculation applications
• Stainless steel – Protects against corrosive fluids
• Available in standard union or two-bolt flange
• 3-speed SuperBrute technology available
• Timer and line-cord options available
• Integrated, removable check valve
• Quick connect terminals – for easy installation
• Highest starting torque in its class
• Industry leading three-year warranty
This item replaces: 59896127 (UP15-18SU)
The UP15-29SU is the perfect pump for domestic hot water recirculation. Provides flows up to 20 GPM and head just below 10. With 1 threaded union connection and terminal box electrical connection. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only 2 gaskets for sealing. The bearings are lubricated by the pumped liquid.
***Unions NOT Included*** Union Choices (Sold Separate) Are: Standard Unions 529912: 3/4" Half-Union Threaded 529913: 1/2" Bronze Sweat Union Unions With Checks 519850: 1/2" Union Set Bronze 519852: 3/4" Union Set Bronze
