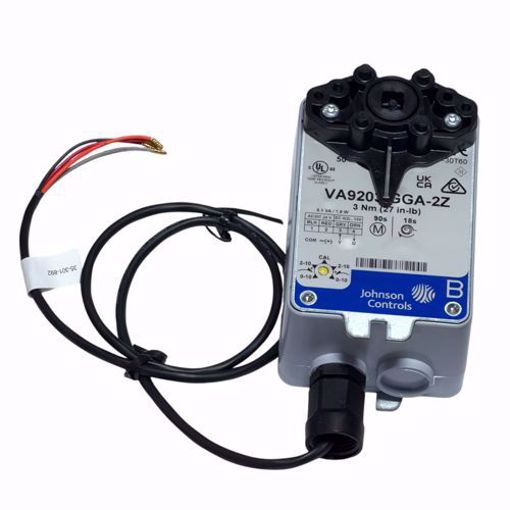

🔧 Johnson Controls VA9203-GGA-2Z Actuator – 24V Spring Return, Proportional Control (Plenum Cable)
🔹 Top Description (Above the Fold)
The Johnson Controls VA9203-GGA-2Z is a 24V electric spring return ball valve actuator designed for precise and reliable control in HVAC systems. Built for use with VG1000 Series ball valves, this actuator delivers accurate proportional positioning using 0–10 VDC or 2–10 VDC control signals. Featuring a durable spring return mechanism for fail-safe operation and a factory-installed plenum-rated cable, it is ideal for installations in environmental air-handling spaces. Engineered for performance and longevity, the VA9203-GGA-2Z ensures dependable operation even under demanding conditions.
✅ Key Features
✔ 24V AC/DC powered actuator
✔ Proportional control: 0–10 VDC, 2–10 VDC (0/4–20 mA with resistor)
✔ Spring return fail-safe operation
✔ 27 lb-in (3 Nm) torque output
✔ 90-second motor run time
✔ Fast spring return (12–17 seconds typical)
✔ 95° rotation stroke
✔ Includes 120" plenum-rated cable
✔ Designed for environmental air-handling spaces (NEC compliant)
✔ Direct-mount design for VG1000 Series ball valves
✔ Durable, reliable performance in HVAC applications
✔ NEMA 2 / IP54 rated enclosure
📊 Specifications
| Specification | Details |
|---|
| Brand |
Johnson Controls |
| Model |
VA9203-GGA-2Z |
| Voltage |
24V AC/DC |
| Control Signal |
0–10 VDC / 2–10 VDC / 0(4)–20 mA (with resistor) |
| Torque |
27 lb-in (3 Nm) |
| Run Time (Powered) |
90 seconds |
| Spring Return Time |
12–17 sec typical (16 sec nominal) |
| Max Return Time |
22 sec @ -22°F |
| Rotation |
95° |
| Power Consumption |
5.1 VA running / 1.9 W holding |
| Cable Length |
120 inches (plenum-rated) |
| Enclosure Rating |
NEMA 2 / IP54 |
| Operating Temp |
-22°F to 140°F (-30°C to 60°C) |
| Humidity |
90% RH max, non-condensing |
| Mounting |
Direct mount |
⚠️ Common Symptoms of a Failing Actuator
- Valve not opening or closing properly
- HVAC zone not maintaining temperature
- Actuator not responding to control signal
- Stuck in open or closed position
- Slow or inconsistent valve movement
- System running continuously or short cycling
❓ Frequently Asked Questions (FAQ)
Q: What valves is this actuator compatible with?
A: It is designed for use with Johnson Controls VG1000 Series 1/2", 3/4", and 1" ball valves.
Q: What makes this model “plenum rated”?
A: It includes a plenum-rated cable suitable for installation in air-handling spaces per NEC (NFPA 70) requirements.
Q: Does this actuator fail open or closed?
A: It features a spring return mechanism for fail-safe operation (position depends on installation setup).
Q: Can it use a 4–20 mA signal?
A: Yes, with the addition of a 500-ohm resistor.
🛒 Shopping Tips
- Verify valve compatibility (VG1000 Series) before ordering
- Confirm control signal type (voltage vs current)
- Check if plenum-rated cable is required for your installation
- Ensure torque rating matches your valve size/application
- Replace actuator if experiencing slow or failed valve response
