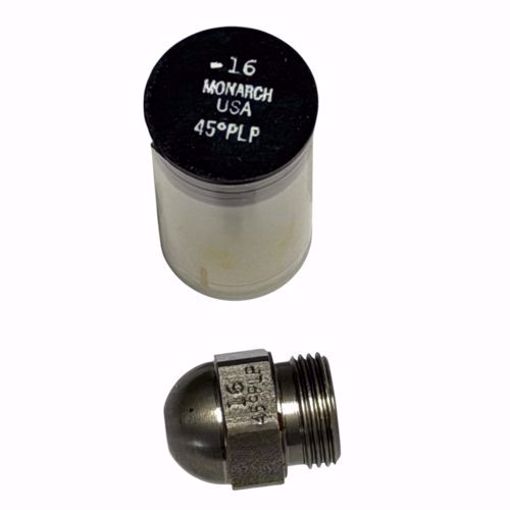

🔥 Monarch M160045PLP Oil Burner Nozzle – 16.00 GPH 45° Semi-Solid (PLP)
The Monarch M160045PLP oil burner nozzle is built for high-capacity burner systems, delivering 16.00 GPH fuel flow with a 45° spray angle and a semi-solid (PLP) spray pattern. Engineered for efficient atomization and stable combustion, this nozzle provides strong ignition, consistent flame performance, and cleaner operation in demanding heating applications.
The PLP semi-solid cone design is the standard for larger capacity nozzles, offering fine atomization and a controlled spray pattern that transitions gradually toward a more hollow spray in higher flow ranges, helping maintain stable combustion performance across heavy-duty applications.
✅ Key Features
✔ 16.00 GPH flow rate for high-output burner systems
✔ 45° spray angle for controlled flame shape
✔ Semi-Solid (PLP) spray pattern for balanced fuel distribution
✔ Standard design for larger capacity oil burner applications
✔ Provides fine atomization for improved combustion efficiency
✔ Helps reduce soot buildup and improve burner performance
✔ Compatible with a wide range of oil burner systems
✔ Durable construction for long service life
📊 Specifications
| Specification | Details |
|---|
| Brand |
Monarch |
| Model |
M160045PLP |
| Flow Rate |
16.00 GPH |
| Spray Angle |
45° |
| Spray Pattern |
Semi-Solid (PLP) |
| Application |
Oil Burner Nozzle |
⚠️ Common Symptoms of a Worn or Incorrect Nozzle
- Poor combustion or smoky flame
- Delayed ignition or burner misfires
- Excess soot buildup
- Increased fuel consumption
- Unstable or improper flame pattern
❓ Frequently Asked Questions (FAQ)
Q: What does 16.00 GPH mean?
A: It indicates the nozzle delivers 16.00 gallons of fuel per hour under standard conditions.
Q: What does the 45° spray angle do?
A: It controls the shape and direction of the flame inside the combustion chamber.
Q: What is a PLP spray pattern?
A: The semi-solid cone (PLP) is the standard pattern for larger capacities, offering fine atomization with a controlled spray that gradually becomes more hollow at higher outputs.
Q: How often should I replace the nozzle?
A: Typically during annual maintenance to maintain efficiency and performance.
🛒 Shopping Tips
🧭 Match flow rate (GPH) and spray angle exactly to your burner’s specifications
🔄 PLP = Semi-Solid Cone – standard for larger capacity burners
- Replace nozzles regularly for optimal efficiency and safety
- Keep spare nozzles available to minimize downtime
