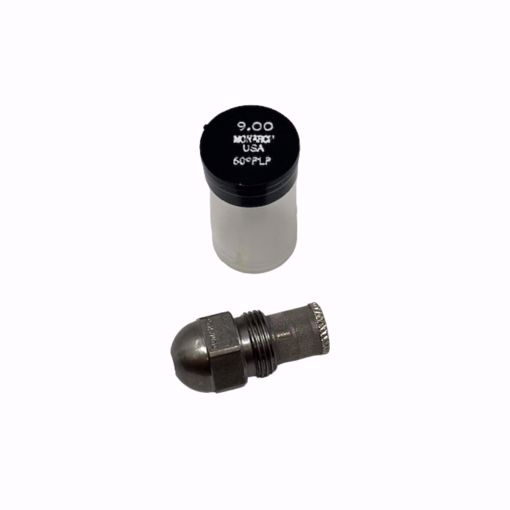

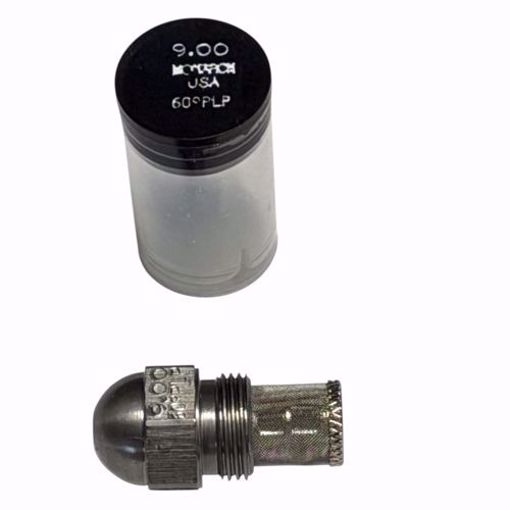

🔥 Monarch M90060PLP Oil Burner Nozzle – 9.00 GPH 60° Semi-Solid (PLP)
📦 Product Overview
The Monarch M90060PLP oil burner nozzle is designed for reliable medium-to-high capacity combustion systems, delivering 9.00 GPH fuel flow with a 60° spray angle and a semi-solid (PLP) spray pattern. It provides efficient atomization, stable combustion, strong ignition, and cleaner operation in demanding heating applications.
The PLP spray pattern is engineered for efficient atomization and stable combustion, delivering strong ignition, consistent flame performance, and cleaner operation. It is the standard for larger capacity nozzles, offering fine atomization with a controlled spray pattern that gradually transitions toward a more hollow spray in higher flow ranges, helping maintain stable combustion performance across heavy-duty applications.
✅ Key Features
✔ 9.00 GPH flow rate for medium/high-output burner systems
✔ 60° spray angle for balanced flame coverage
✔ PLP semi-solid cone pattern for efficient fuel distribution
✔ Stable combustion with strong ignition performance
✔ Designed for industrial and commercial burner applications
✔ Helps reduce soot and improve efficiency
✔ Durable construction for long service life
📊 Specifications
| Specification | Details |
|---|
| Brand |
Monarch |
| Model |
M90060PLP |
| Flow Rate |
9.00 GPH |
| Spray Angle |
60° |
| Spray Pattern |
Semi-Solid (PLP) |
| Application |
Oil Burner Nozzle |
⚠️ Common Symptoms of a Worn Nozzle
- Poor or smoky combustion
- Delayed ignition or misfires
- Excess soot buildup
- Increased fuel consumption
- Unstable flame pattern
❓ Frequently Asked Questions (FAQ)
Q: What does 9.00 GPH mean?
A: It is the nozzle’s fuel delivery rate of 9.00 gallons per hour under standard operating conditions.
Q: What is the PLP spray pattern?
A: The PLP (semi-solid cone) pattern is designed for larger capacity nozzles, providing stable combustion and efficient atomization, with a spray that gradually becomes more hollow at higher flow ranges.
Q: What does the 60° spray angle affect?
A: It controls the width of the flame pattern, helping match burner chamber design and combustion requirements.
Q: What happens if I use the wrong nozzle size?
A: Incorrect sizing can cause poor combustion, soot buildup, inefficient fuel use, and burner lockouts.
Q: How often should burner nozzles be replaced?
A: Typically during annual maintenance, or sooner if performance issues appear.
Q: Can I clean and reuse a nozzle instead of replacing it?
A: It’s not recommended—cleaning can damage the precision orifice and affect spray performance.
🛒 Shopping Tips
🧭 Match GPH and spray angle exactly to burner specs
🔄 PLP = Semi-Solid cone pattern for larger capacity applications
- Replace nozzles regularly for peak efficiency
- Keep spares on hand to reduce downtime
