1. PRODUCT OVERVIEW

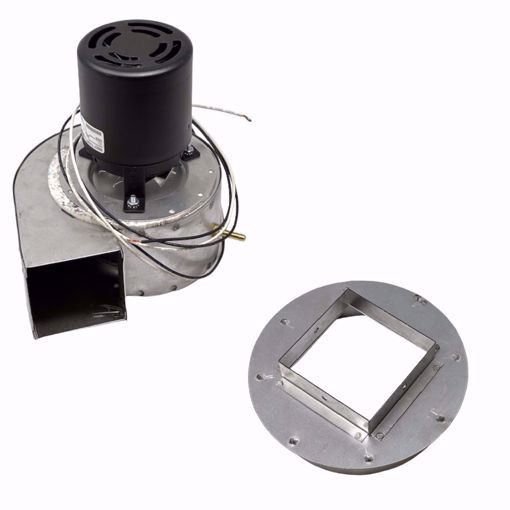

The Sterling 11507R04595 is a complete power venter (draft inducer) assembly designed for high-capacity tubular unit heaters. This assembly is engineered to provide precise venting for 300,000 to 400,000 BTU units, ensuring the safe exhaust of combustion byproducts and maintaining optimal heater efficiency.
2. TECHNICAL SPECIFICATIONS
Feature
Specification
Motor Type
Permanent Split Capacitor (PSC)
Electrical Rating
115 Volts / 60 Hz
Operating Speed
3000 RPM
Housing Material
Heavy-Duty Galvanized Steel
Blower Wheel
Centrifugal Forward-Curved
Motor Manufacturer
Fasco (ID: 71219555 / 7121-9555)
3. SYSTEM COMPATIBILITY
This assembly is a direct OEM replacement for the following product lines:
Sterling Models
•
TF Series: TF300, TF350, TF400
•
SF Series: SF300, SF350, SF400
•
TC Series: TC300, TC350, TC400
•
SC Series: SC300, SC350, SC400
Dayton / Grainger Models
•
Standard Models: 4LX63, 4LX64, 4LX65, 4LX66, 4LX67, 4LX68
•
High-Efficiency Series: 32V243, 32V244, 32V245, 32V261, 32V262, 32V263
•
Additional Cross: 32V252, 32V253, 32V254
4. CROSS-REFERENCE GUIDE
This unit is functionally identical and interchangeable with the following manufacturer part numbers:
•
Carrier / Bryant / Payne: 507R04595, 11507R04595
•
Beacon Morris: 507R04595, 11507R04595
•
Heil-Quaker / ICP: 507R04595, 11507R04595
•
Grainger / Zoro: 32RU83, G8812614
5. KIT CONTENTS
•
(1) Motor and Centrifugal Blower Wheel
•
(1) Galvanized Scroll Housing with Pressure Tap
•
(1) Mounting Flange/Gasket
•
(1) Outlet Transition Box
