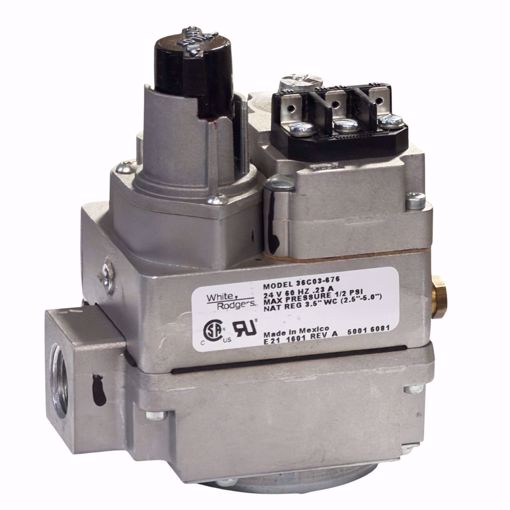

60270-002 WAYNE GAS VALVE, NATURAL GAS – P250AF & P265F STANDING PILOT SERIES BURNER
Replacement For: White Rodgers 36C02-676
Product Overview
The Wayne 60270-002 Gas Valve is designed for standing pilot series burners including P250AF and P265F models. This natural gas valve ensures precise and safe fuel regulation for reliable burner operation. With a fast-opening design and durable construction, it maintains consistent pressure and flow for optimal combustion efficiency.
✅ Key Features
-
Compatible with Wayne P250AF & P265F standing pilot burners
-
Direct replacement for White Rodgers 36C02-676
-
24V, 60Hz, 0.23 Amps
-
Maximum pressure: 1/2 PSI
-
Natural gas regulation: 3.5" WC (range 2.5" to 5.0")
-
Inlet/Outlet: 3/4" x 3/4" straight outlet
-
Fast-opening for reliable ignition and operation
📋 Specifications
| Specification | Details |
|---|
| Part Number |
60270-002 |
| Manufacturer |
Wayne |
| Replacement |
White Rodgers 36C02-676 |
| Voltage |
24V |
| Frequency |
60Hz |
| Current |
0.23 Amps |
| Max Pressure |
1/2 PSI |
| Gas Type |
Natural Gas |
| Regulated Pressure |
3.5" WC (2.5"–5.0") |
| Connections |
3/4" x 3/4" inlet/outlet |
| Operation |
Fast-opening |
🚨 Common Symptoms This Part Fixes
-
Burner fails to ignite or lights intermittently
-
Inconsistent or low gas pressure
-
Burner flame instability
-
Standing pilot will not remain lit
❓ Frequently Asked Questions (FAQ)
Q: Which burners is this gas valve compatible with?
A: Compatible with Wayne P250AF and P265F standing pilot series burners.
Q: Can this replace White Rodgers 36C02-676?
A: Yes, it is a direct replacement.
Q: What is the natural gas regulated pressure?
A: 3.5" WC (adjustable range 2.5" to 5.0").
Q: What are the inlet/outlet sizes?
A: 3/4" x 3/4" straight outlet.
Q: Is this fast-opening?
A: Yes, designed for fast-opening operation to improve ignition reliability.
🛒 Shopping Tips
-
Verify burner model compatibility before purchase
-
Ensure proper gas type (natural gas) and pressure requirements
-
Inspect existing valve connections for leaks during replacement
