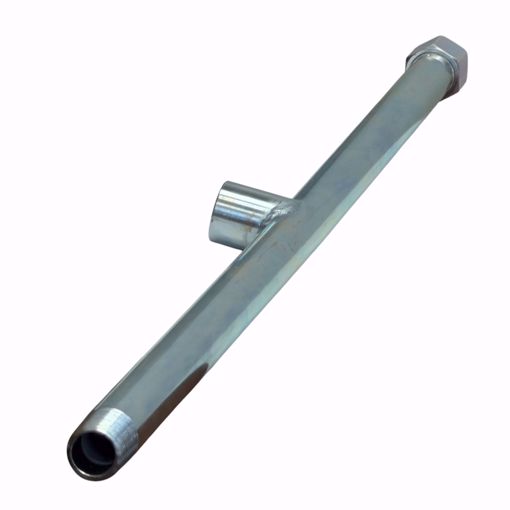

560-907-682 Weil-McLain PIP-G Gas Pilot Tube with Cap – 1/2" NPT, 26.0" Length
The 560-907-682 Weil-McLain PIP-G pilot tube with cap is a genuine OEM gas pilot tubing assembly designed for safe and reliable gas delivery to the pilot burner in Weil-McLain boiler systems. Featuring a 1/2" NPT connection and a 26.0-inch overall length, this pilot tube ensures proper fit, secure sealing, and dependable pilot operation.
Manufactured to original specifications, this component is critical for maintaining consistent ignition performance and safe boiler operation.
✅ Key Features & Benefits
✔ Genuine OEM Weil-McLain pilot tube assembly
✔ Includes pilot tube with protective cap
✔ 1/2" NPT threaded connection for secure installation
✔ 26.0" overall length for proper routing and fit
✔ Designed for reliable gas flow to pilot burner
✔ Durable construction for long service life
✔ Direct replacement — no modifications required
📋 Product Specifications
| Feature | Specification |
|---|
| Manufacturer |
Weil‑McLain |
| Part Number |
560-907-682 |
| Component Type |
Pilot Gas Tube with Cap |
| Connection Size |
1/2" NPT |
| Outside Diameter |
1.36" |
| Overall Length |
26.0" |
| Application |
Gas Boiler Pilot Assembly |
🔁 Replaces / Equivalent
This pilot tube replaces or matches the following OEM reference:
(Always verify length, diameter, and thread size before ordering.)
⚠️ Common Symptoms This Part Fixes
-
Pilot will not light or stay lit
-
Gas odor near pilot tubing
-
Cracked, corroded, or leaking pilot line
-
Improper gas flow to pilot burner
-
Pilot assembly replacement during boiler service
❓ Frequently Asked Questions (FAQ)
Q: Is this an OEM Weil-McLain part?
A: Yes. This is a genuine OEM replacement built to Weil-McLain specifications.
Q: Does this include the cap?
A: Yes. The assembly includes the pilot tube with cap.
Q: What size is the connection?
A: The threaded connection is 1/2" NPT.
Q: Is this pilot tube pre-bent?
A: This tube is supplied in a standard straight configuration. Installation routing depends on the boiler model.
Q: Is professional installation recommended?
A: Yes. Gas components should be installed by a licensed HVAC technician.
🛒 Shopping Tips
-
Always verify length and thread size before ordering
-
Inspect pilot burner and fittings during replacement
-
Replace pilot tubing if corrosion or leaks are present
-
Use approved gas-rated thread sealant during installation
-
OEM parts ensure proper fit and safe operation
